2003-2009, 2013-2019 for Honda CRF230F LA SLEEVE Cylinder H5491
2003-2009, 2013-2019 for Honda CRF230F LA SLEEVE Cylinder H5491

2003-2009, 2013-2019 for Honda CRF230F LA SLEEVE Cylinder H5491

LA SLEEVE

$97.95

Quantity

Manufacturer: L.A. Sleeve
MPN: H5491

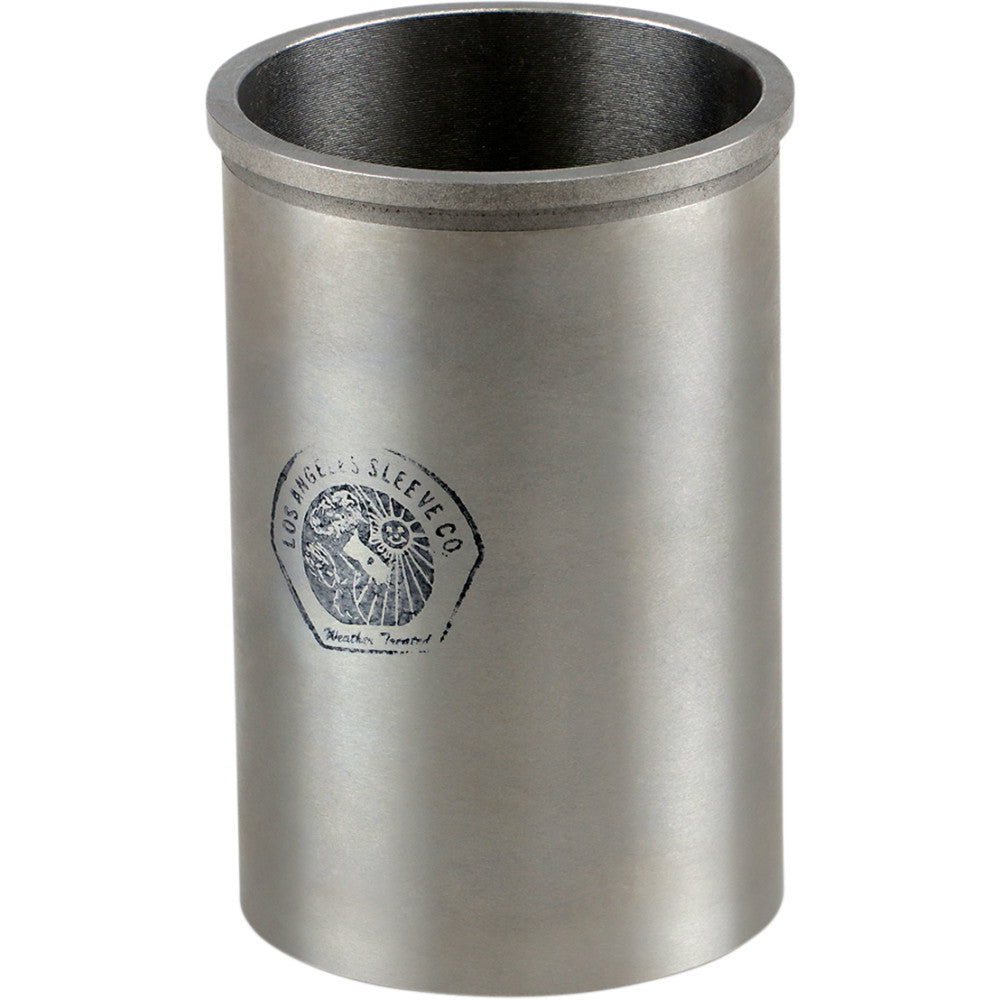

Title: Cylinder Sleeve
Option: 65.5mm

  • Re-sleeve worn or seized cylinders with sleeves manufactured by L.A. Sleeve Co.
  • An economical solution available for riders, racers and engine builders everywhere
  • Centrifugal castings used in these sleeves are made from a carbon-chrome-molybdenum alloy of 200 Brinell hardness, ensuring ease of installation, trouble-free boring and a dependable, long-lasting engine

CYLINDER TYPE COLUMN EXPLANATIONS

  • CL - The cylinder's original cast-in liner will be bored, but not be completely removed; sleeve is designed to insert into the iron-lined cylinder
  • CS - Original barrel has a cast-in iron liner in the cylinder; liner must be bored out completely (do not try to push out the cast-in liner)
  • AC - Original cylinder bore is alloy-chrome plated, nikasil, or electrofused; cylinder must be bored to accept new sleeve
  • RS - Original barrel has a replacement sleeve

Fitment Chart

YearMakeModelPositionNotes
2003-2009, 2013-2019HondaCRF230F--
